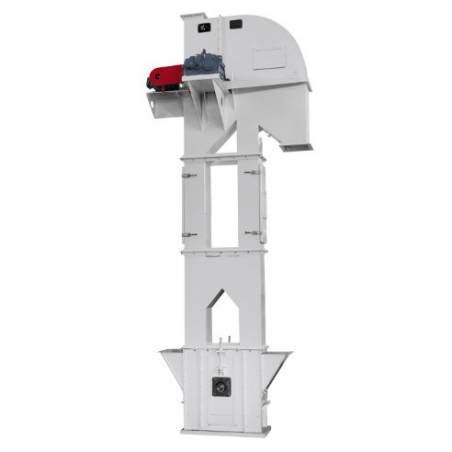

該機是一種固定裝置的垂直機械輸送設備，主要是用于糧食、食品、飼料和化工等部門顆粒和粉狀物料的垂直提升輸送。
It is a kind of fixed vertical conveying equipment, mainly used in grain, food, feed, chemical engineering and other industries for vertical lifting & conveying of granular & powdery materials.
特點：
Characteristics:
1、驅動功率小,采用流入式喂料、誘導式卸料、大容量的料斗密集型布置.在物料提升時幾乎無回料和挖料現象,因此無效功率少。
The driving power is small; flow-type feeding & induction-type discharge modes are adopted; large-capacity hoppers are set intensively. It is almost free of material return & excavation phenomena during material lifting, therefore, there is little reactive power.
2、專用模具壓制多層咬邊的加強筒體，強度高、密封性好。
Special mould is adopted to compact multi-layer undercut strengthened drum, and high strength and satisfactory sealing performance can be achieved.
3、提升范圍廣,這類提升機對物料的種類、特性要求少,不但能提升一般粉狀、小顆粒狀物料,而且可提升磨琢性較大的物料.密封性好,環境污染少。
It has a wide lifting range; less requirements for category and characteristics are proposed; it can lift general powdery & granular materials, as well as materials with relatively high milling performance. Satisfactory sealing performance and little environmental pollution can be guaranteed.
4、使用壽命長,提升機的喂料采取流入式,無需用斗挖料,材料之間很少發生擠壓和碰撞現象。本機在設計時保證物料在喂料、卸料時少有撒落,減少了機械磨損。
It has a long service life. Flow-type feeding mode is adopted, and it is unnecessary to excavate materials with bucket; besides, there are little material squeezing and collision phenomena. The equipment is designed to ensure less material loss during feeding and discharging, and mechanical wear is reduced.
技術參數：
Technical parameters:
|
規格型號 Spec. & model |
畚斗規格 Spec. of winnowing pan |
傳動比 Drive ratio |
畚斗帶線速（m/s） Line speed of winnowing pan belt (m/s) |
產量（t/h） Output (t/h) |
||
|
粉料 Powdery materials |
粒料 Granular materials |
粉料 Powdery materials |
粒料 Granular materials |
|||
|
TDTG26/13 |
DQ1311 DS1311 |
9-23 |
0.8-1.2 |
1.2-2.2 |
1.2-2 |
6.5-9.5 |
|
TDTG26/18 |
DQ1814 DS1814 |
9-23 |
0.8-1.2 |
1.2-2.2 |
2-4.5 |
15-20 |
|
TDTG26/23 |
DQ2314 DS2314 |
9-23 |
0.8-1.2 |
1.2-2.2 |
5-8 |
16-25 |
|
TDTG36/13 |
DQ1311 DS1311 |
9-23 |
1.2-1.6 |
1.6-3 |
2-3 |
8-12 |
|
TDTG36/18 |
DQ1311 DS1311 |
9-23 |
1.2-1.6 |
1.6-3 |
4.5-6 |
16-17 |
|
TDTG36/23 |
DQ1311 DS1311 |
9-23 |
1.2-1.6 |
1.6-3 |
7-10 |
20-32 |
|
TDTG36/28 |
DQ2816 DS2816 |
9-23 |
1.2-1.6 |
1.6-3 |
8-11 |
25-40 |
|
TDTG40/18 |
DQ1814 DS1814 |
9-23 |
1.3-1.8 |
1.8-3.3 |
5-7 |
22-34 |
|
TDTG50/23 |
DQ2314 DS2314 |
11-29 |
1.3-1.8 |
1.7-3.4 |
8-12 |
30-50 |
|
TDTG50/28 |
DQ2816 DS2816 |
11-29 |
1.3-1.8 |
1.7-3.4 |
9-13 |
40-65 |
